Carlo Gavazzi

Parts - Panel Mount Solid State Relay

Parts - Panel Mount Solid State Relay

Regular price $99.95 AUD
Regular price $134.42 AUD Sale price $99.95 AUD
Sale Sold out
Shipping calculated at checkout.

50 A rms Load, 530 V Load, 32 V Control

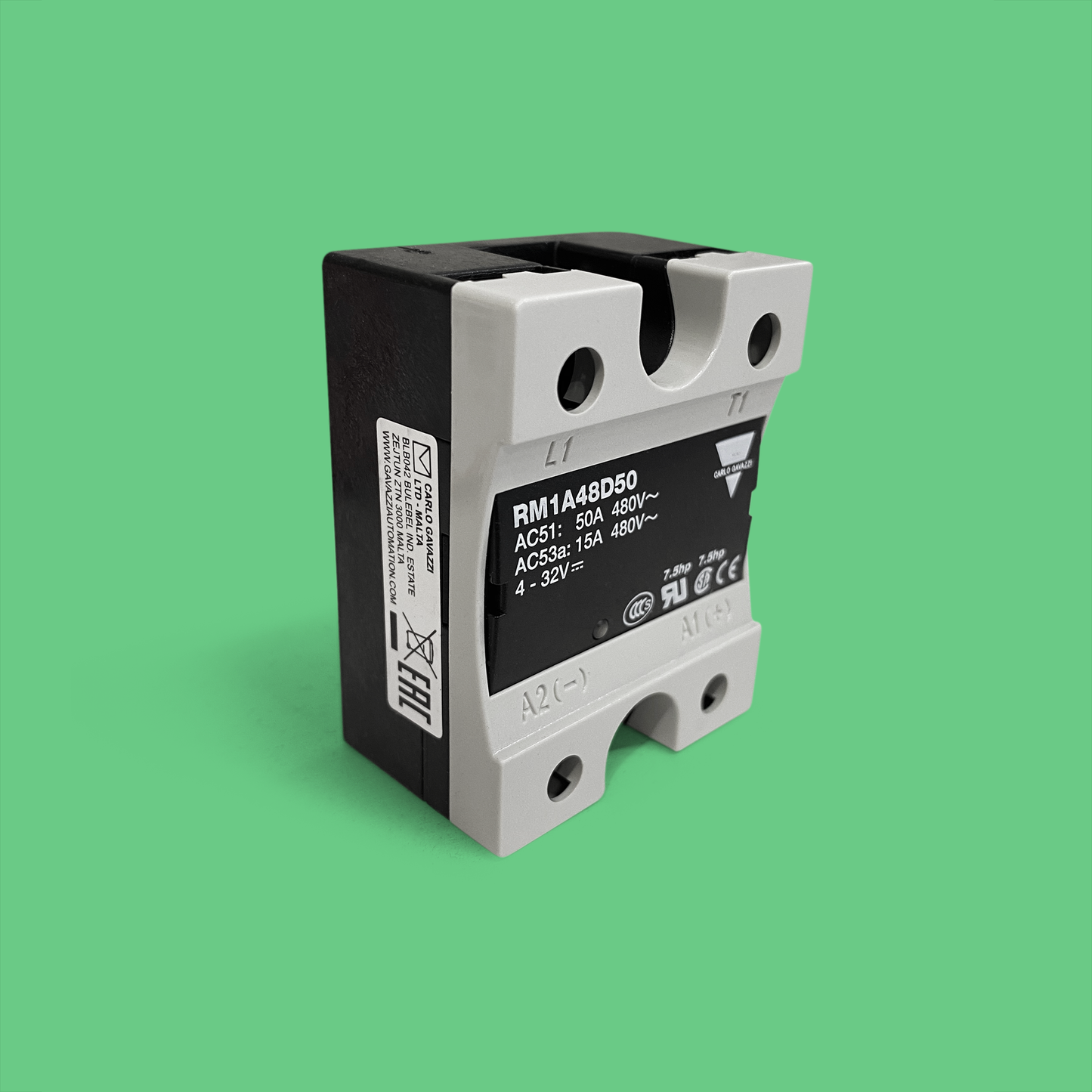

Single-phase solid state back panel mount relay:
• Series RS1A, RAM1A, RM1A/B
• IP20 protection rating
• Integrated LED indicating presence of mains voltage
• Frequency from 45 to 65 Hz
• Integrated voltage transient protection (except for RS1A)


Maximum Load Current: 50 A rms

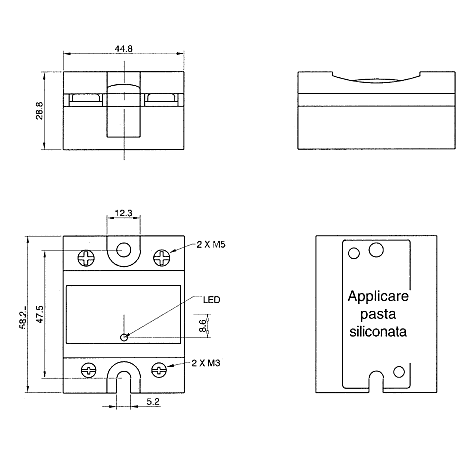

External Dimensions (MM): 44.8 x 58.2 x 28.8
Mounting Type: Panel Mount
Maximum Load Voltage (V): 530
Maximum Control Voltage (V): 32
Switching Type: Zero Cross
Control Voltage Range (V dc): 4 → 32
Minimum Load Current (mA): 250
Output Device: Thyristor
Load Voltage Range (V ac): 42 → 440V
Operating Temperature (℃): -20 → +70
Maximum Operating Temperature (℃): +70
Minimum Operating Temperature (℃): -20
