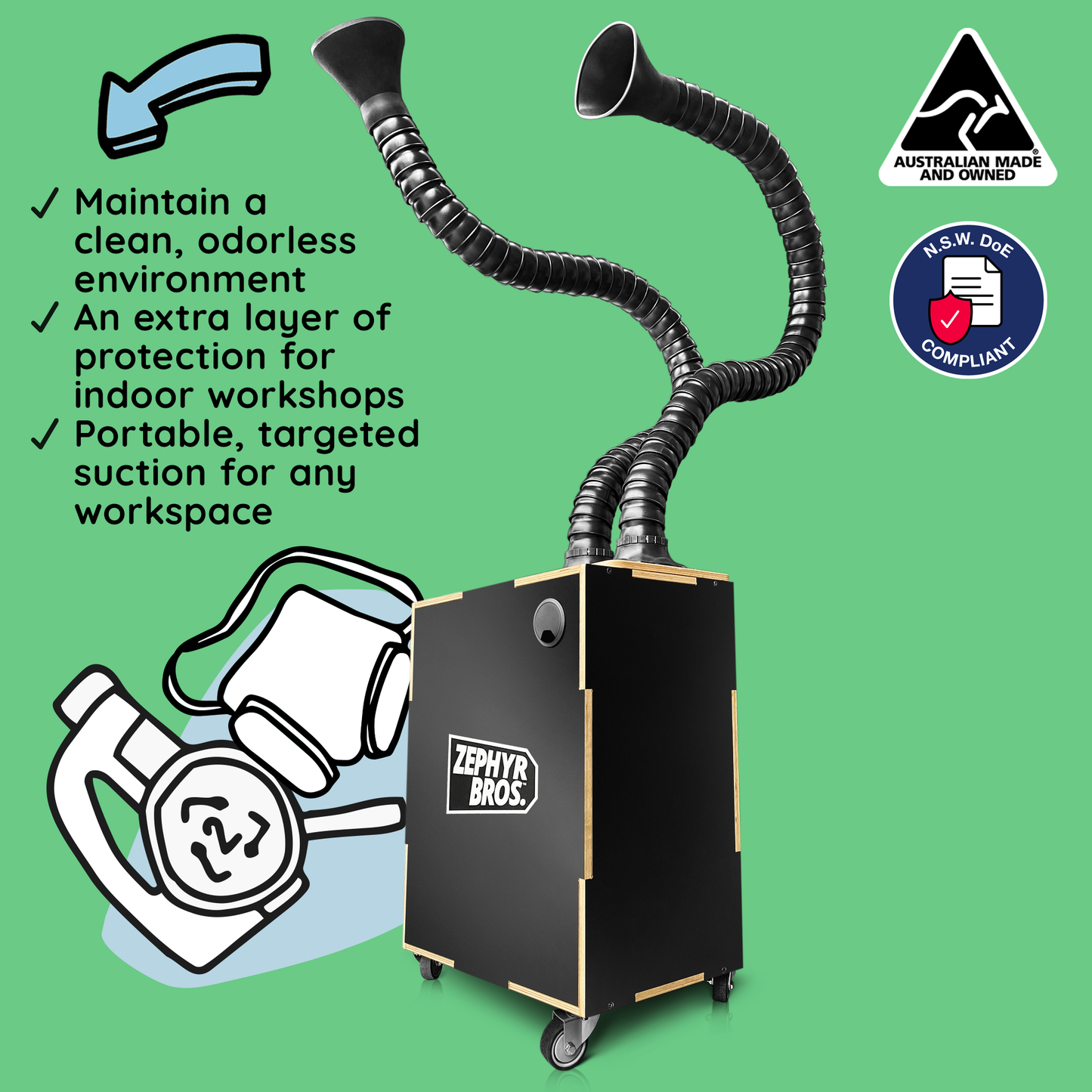

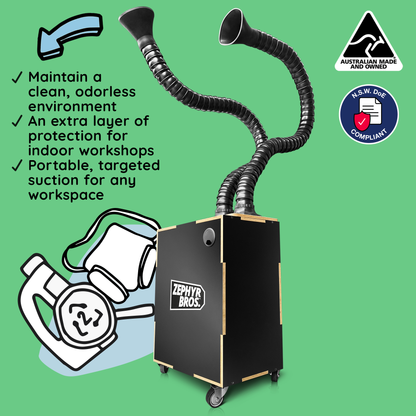

Machine - Fume Extractor (FEX)

Name: Machine - Fume Extractor (FEX)
Brand: Zephyr Bros.
SKU: PP-MAFEXC02
Price: 3845.0 AUD
Availability: InStock

Machine - Fume Extractor (FEX)

$3,845.00 AUD

Sale Sold out

Shipping calculated at checkout.

*This product is made to order.

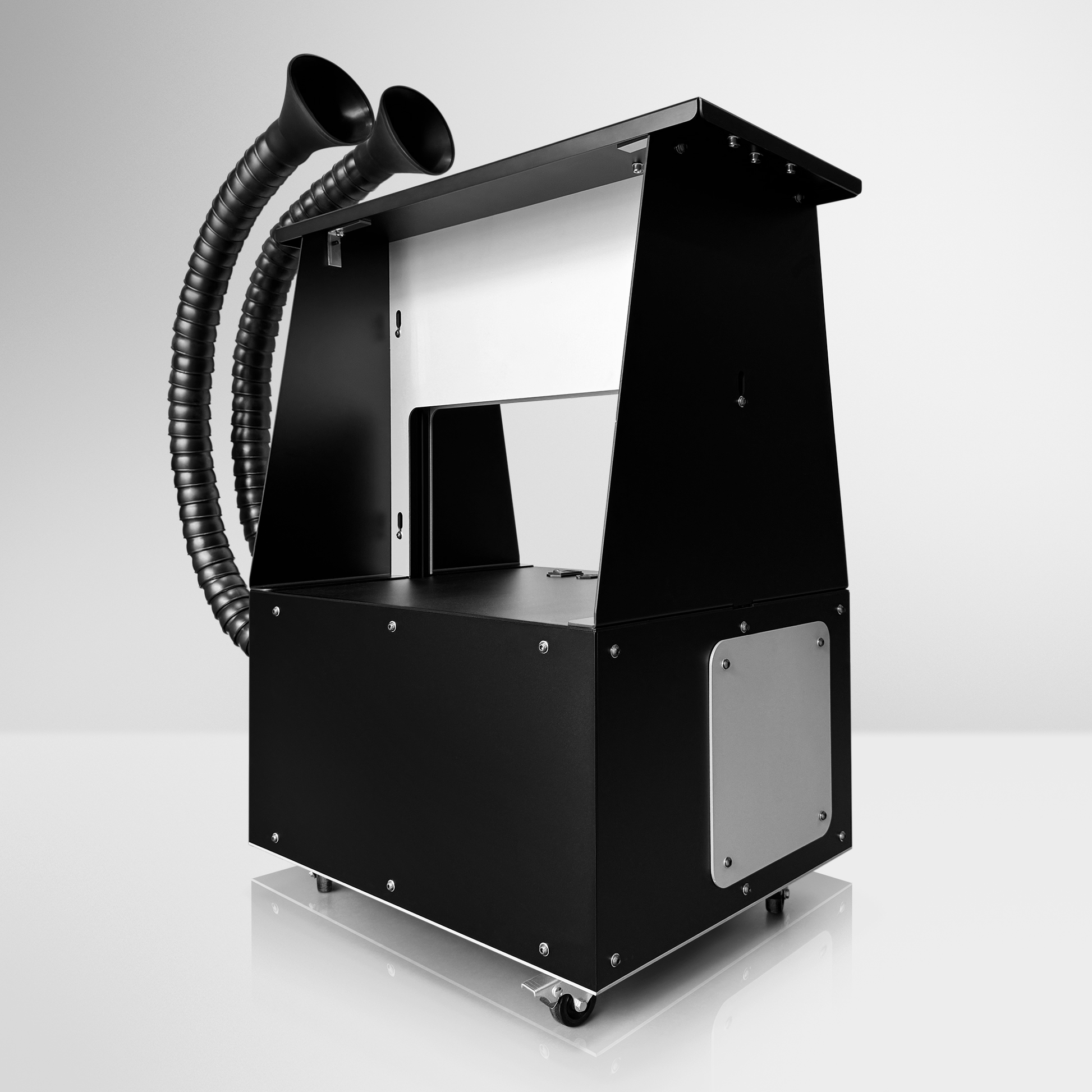

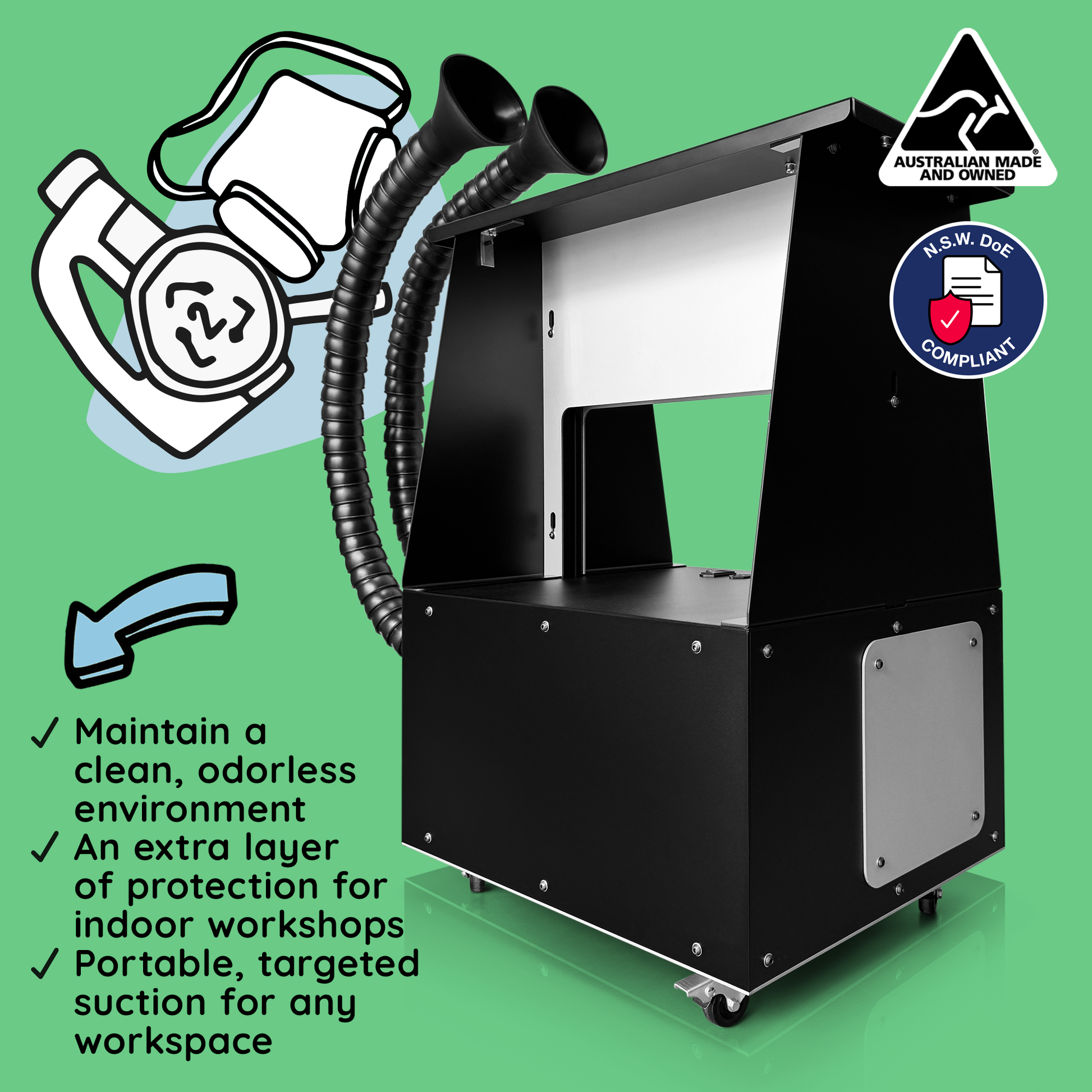

Unit Complete Caddy Base / Fume Extractor Benchtop

Product variants

Made in Australia | Used worldwide

Sustainable creation? It's a breeze. From fume extraction to ultimate workspace: One base, multiple configurations, complete control. From STEM labs to art studios. Introducing the Zephyr Bros. Fume Extraction Unit!

Features:
• Breathe easy and create responsibly with carbon filtered 683m³/h airflow protection
• Flexible dual suction arms, multi-directional positioning, ultimate control for fume capture at any angle
• The modular pegboard brings order, unlocks endless possibilities, and fosters lean workflows (Benchtop Unit)
• With the inclusion of lockable castors, you'll go where creativity takes you with this portable unit, giving you the freedom to create anywhere
• Maintain clean air with easy filter changes
• Quiet fume extraction so that you can unleash ideas, not noise

What you get - Complete Caddy:

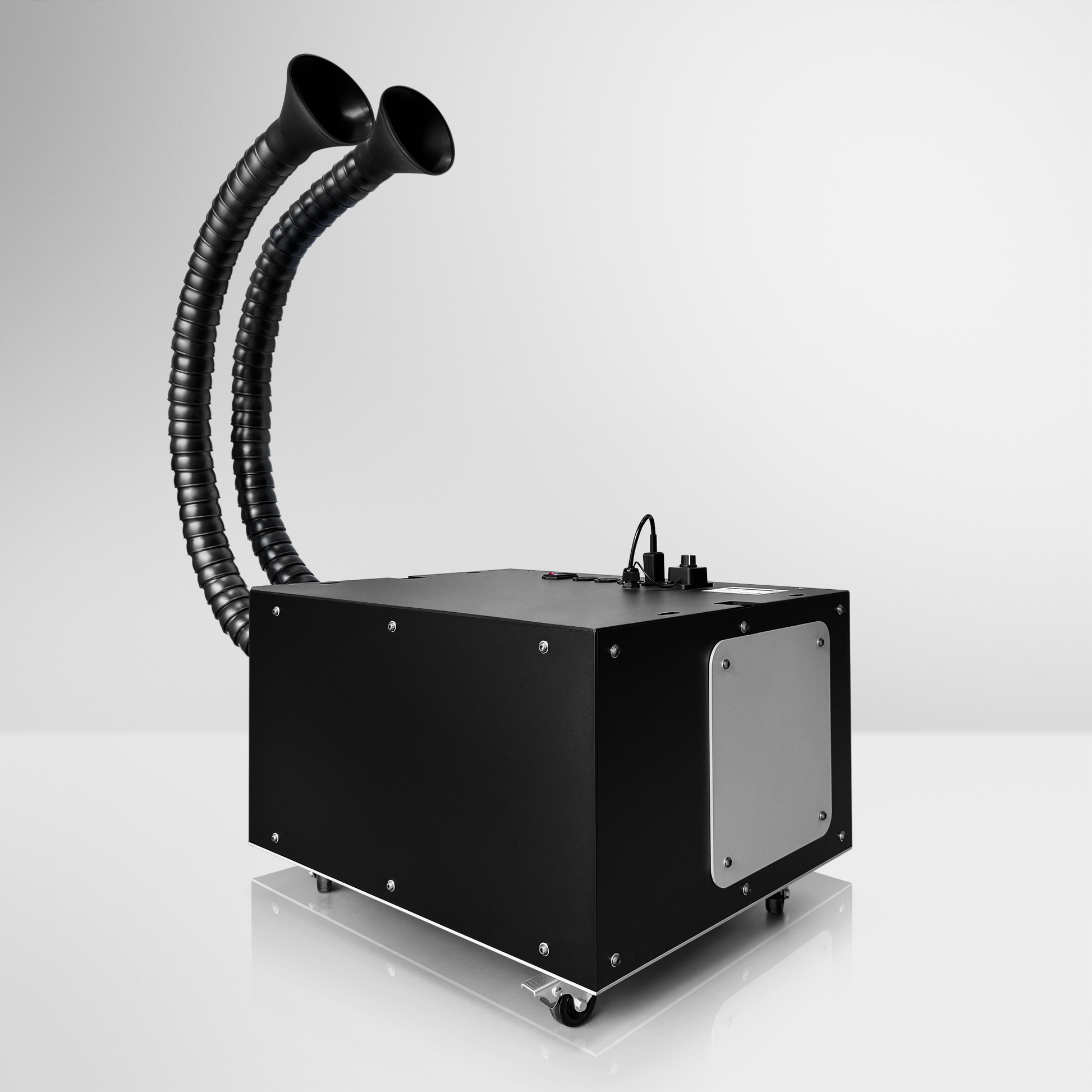

• Base / Fume Extractor Unit
• Benchtop Unit*

What you get - Base / Fume Extractor Unit:
• 2 x Extractor Tubes
• 1 x Granular Activated Carbon Filter
• 1 x Inline Fan
• 4 x Castors

What you get - Benchtop Unit*:
• 1 x Pegboard
• 3 x Equipment Pegs

*Assembly required.

Technical specifications

Machine Type: Fan
Power Supply: Single Phase
Caddy Weight (kg): 28
Caddy Dimensions (mm): 700L x 485W x 840H
Power (W): 70
Voltage (V): 240 AC
Amperage (A): 0.3
Cable: Hardwired AU Cable
Regulatory Compliance Mark (RCM): Yes
Fan Size: 6 Inch
Speed (RPM): 2800
Blade Material: Stainless Steel
Filter Type: Carbon
Airflow (m³/h): 683
Fan Noise (dB-A): <32
Equipment Safety In Schools (ESIS): Compliant

Production capabilities

Extract and filter out VOC's, including harmful gases and minute impurities / contaminants.

Safety first!

The Fume Extractor is engineered to the highest industrial standards, complying with AS/NZS 4024.1 Safety Of Machinery and AS/NZS 3820 Essential Requirements For Electrical Equipment.

NSW Department of Education Compliance: For N.S.W. schools requiring a fully compliant solution, we offer this unit as specialised DoE-modified, risk-assessed equipment. This NSW-spec build is designed specifically to conform with the latest Equipment Safety in Schools (ESIS) advice and the NSW Government Resource Efficiency Policy (GREP), ensuring the machinery is audit-ready for the TAS environment.

Please note: While this machine is fitted with high-level safety features, these are powerful industrial tools. Proper safety protocols and operator training must be implemented at all times.

Why buy from PPM?

Australian made certified: We build high quality machines fit for purpose and compliant with Australian Safety Standards.

Knowledge and support: Our machines are built by people who use them! And, if you do happen to need additional assistance, we offer post-purchase support - a pretty important factor when you're investing in equipment.

Assembly options

Benchtop Unit: This component requires assembly. It is designed with a simple, modular construction that allows for quick and straightforward assembly.
