PID Controller, SSR, K-type Thermocouple & Heat Sink

We've put together this PID kit which includes the components required to heat your injection, extrusion or compression machine. This PID kit can be used when building the Precious Plastic injection, extruder or compression machine.

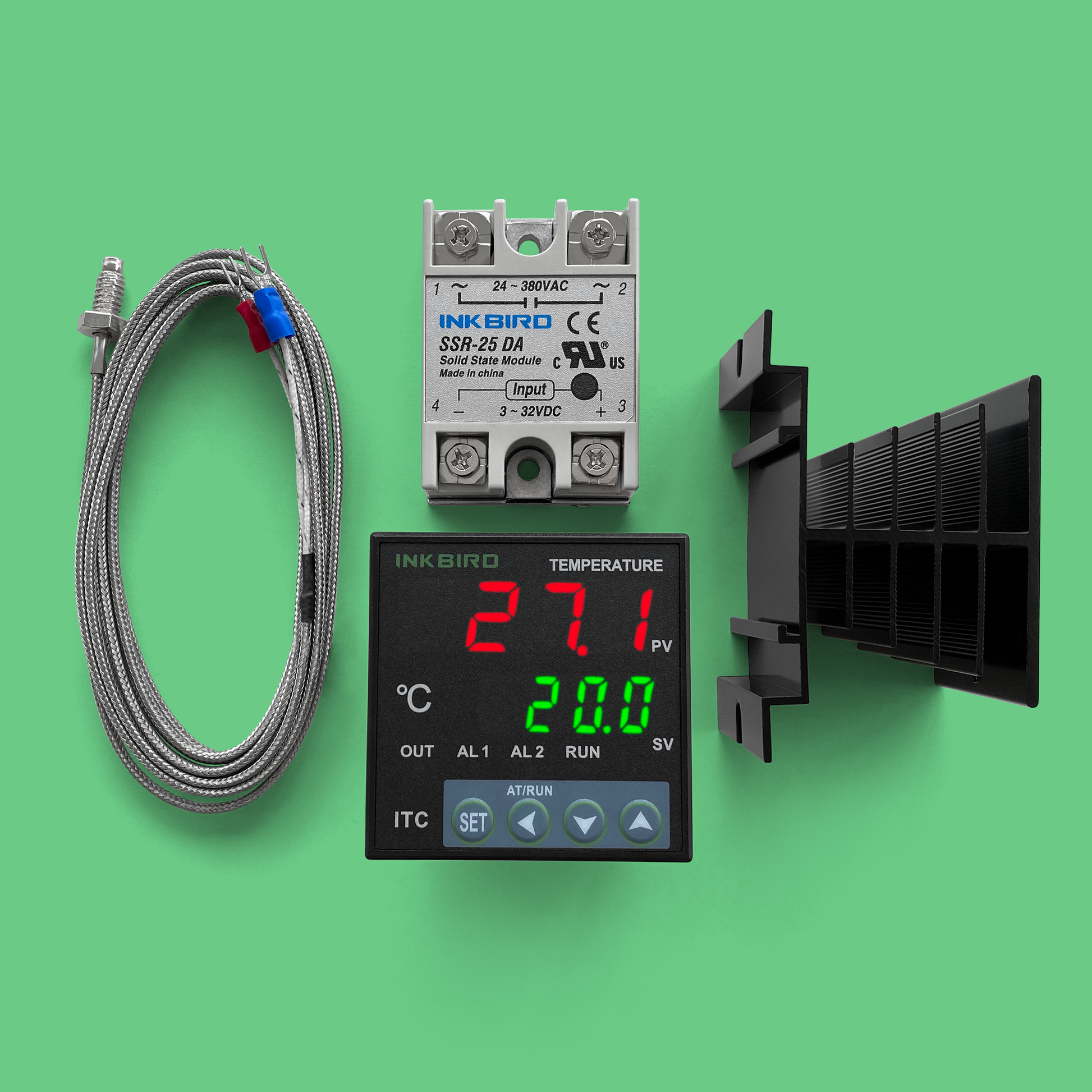

What you get:
• 1 x Inkbird ITC-100VH Pid Temperature Controller
• 1 x 2m K Sensor Thermocouple
• 1 x 25A SSR For Temperature Controller
• 1 x Heat Sink
• 1 x Manual

PID Controller

Model ITC-100VH
Front Panel Dimension (MM) DIN 48 x 48
Cutout Size (MM) 45 x 45
Mounting Method Flush Mounting & Screw Terminals
Power Supply Voltage (V) / (Hz) AC 100-240 50/60
Operating Voltage Range 85~110% Rated Voltage
Power Consumption (VAC) Approx. 5VA(100~240)
Display Accuracy ±0.2%FS 0.1oC(<1000oC);1oC(≥1000oC)
Period Of Sampling (S) 0.5
Temperature Compensation (℃) 0-50
Life Expectancy Of Relay Mechanical≥10,000,000 operations Electrical≥10,000,000 operations
Environmental Conditions (℃) -10~50
RH 35-85% Humidity
Storage Temperature (℃) -25~65
Data Storage 10 years

K-Type Thermocouple

Temperature Range (℃) 0-400
Sensor Diameter (MM) 4.5
Cable Length (M) 2
External Shielding Insulated Shielding
Internal Insulation Fiberglass

25A Single State Relay (SSR)

Load Voltage (VAC) 24-380
Load Current (A) 25
Input Voltage (V) DC 3-32

Black Heat Sink

Top Size (MM) 60 x 50
Bottom Size (MM) 80.39 x 50
Height (MM) 44

For more info on wiring, head here. It's suggested that only a licensed professional attempts to wire your machines - please be safe!

The Precious Plastic blueprints and bill of material often point you to your local scrap yard or online marketplaces, where locating parts can feel like trying to find a needle in a haystack! So we've done the runaround for you, sourcing and supplying some of the 'hard to find' and complex components required for building Precious Plastic machines.

We want to make it easier for you to start up and run your own recycling workspace. When you purchase a product from Precious Plastic Melbourne, you're supporting us in our mission to promote community recycling in Australia!
